Magnetic draft seal for aluminium doors

Stop the draft. Keep the comfort.

A discreet retrofit system that seals unwanted drafts, whistles and dust through exposed aluminium door latch openings.

Designed in the Western Cape. Built for the South Easter.

Created to solve a small problem that makes a big difference.

See Installation I'm Interested
WindSeal cover fitted to an aluminium door
Stops drafts Keeps cold air outside.
Silences whistles Reduces wind noise.
Reduces dust Helps keep interiors cleaner.
Discreet design Neat, simple finish.
Removable cover Access when needed.
Coastal ready Designed for windy places.
How it works

Every gust finds the gap.

Many aluminium doors have exposed latch openings that allow unwanted air, noise and dust to enter your home.

WindSeal provides a simple, discreet solution.

Seal the gap. Keep comfort inside.

Aluminium door latch opening before WindSeal cover is fitted
Before Exposed opening
WindSeal cover installed on aluminium door
After WindSeal fitted
Installation

Installs in under 5 minutes.

Only simple tools are required: a drill with a 5 mm drill bit and a rivet gun.

1 Drilling out the existing top rivet with a 5 mm drill bit

Drill out the existing top rivet

Use a 5 mm drill bit to carefully drill out the existing top rivet.

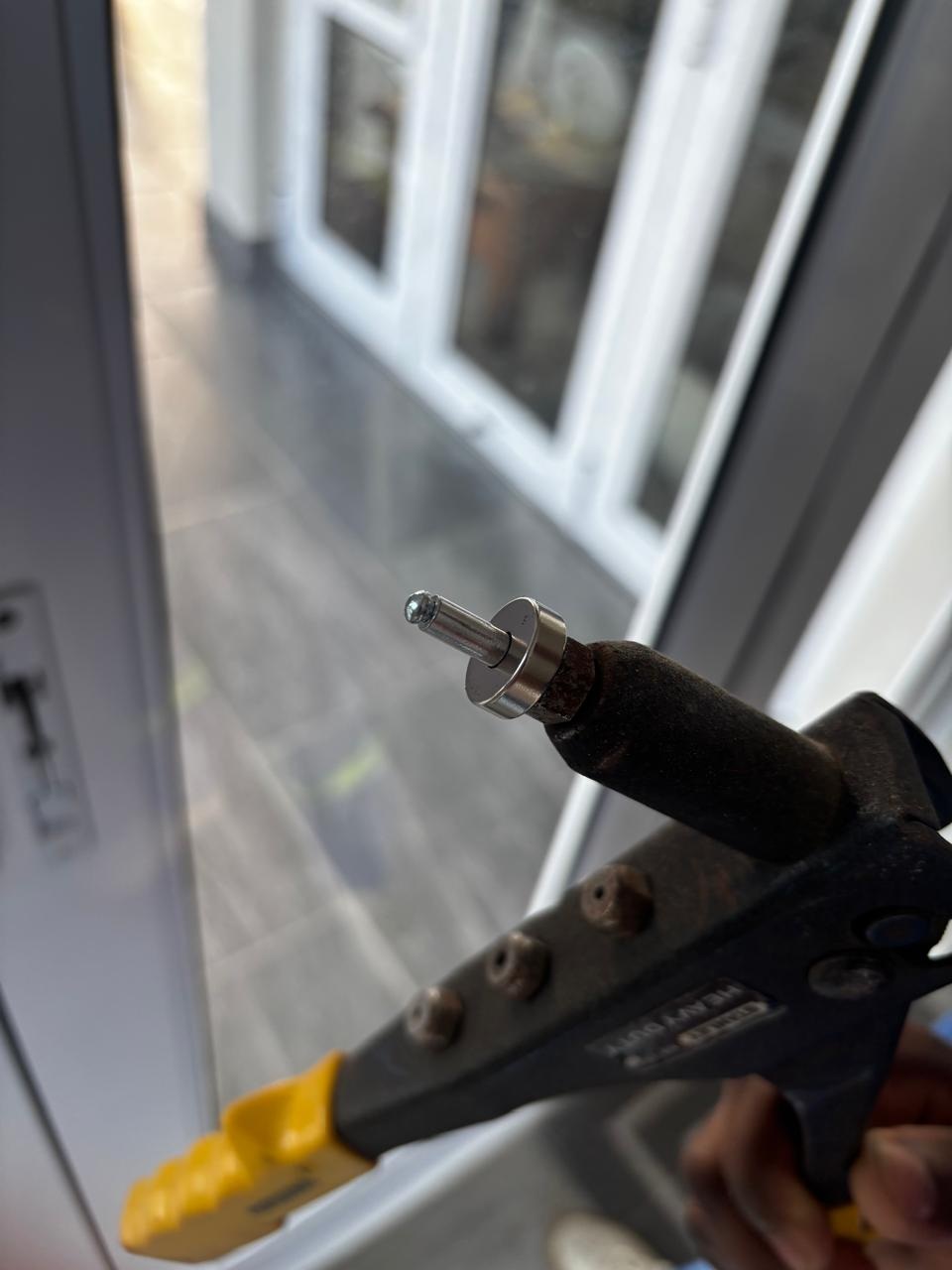

2 Countersunk rivet and countersunk round magnet fitted to a rivet gun

Install the countersunk magnet

Place the supplied countersunk round magnet over the countersunk rivet and insert it into the rivet gun.

3 Installing the top rivet and magnet assembly using a rivet gun

Install the top magnet assembly

Ensure the countersunk side of the magnet faces towards the rivet gun, then secure the rivet.

4 Installing the lower rivet and magnet fixing

Repeat for the bottom rivet

Drill out the bottom rivet and repeat the same fixing process.

5 Both countersunk round magnets installed on the aluminium door

Check the two magnets

Confirm both countersunk round magnets are secure and aligned.

6 WindSeal cover attached over the latch opening

Attach WindSeal

Place the cover onto the magnets to seal the latch opening.

Available colours

Choose the finish that suits your door.

WindSeal is available in two colours designed to complement most aluminium doors.

White

For white aluminium doors and bright interiors.

Black

For black, charcoal and modern architectural finishes.

Specifications

Product details.

Product size

200 mm long × 45 mm wide × 15 mm thick.

Tools required

5 mm drill bit, drill and rivet gun.

Application

Designed for aluminium door latch openings.

FAQ

Quick answers.

Does installation require drilling?

Yes. The existing top and bottom rivets are drilled out using a 5 mm drill bit.

What tools are required?

A drill, 5 mm drill bit and rivet gun are required.

Can the cover be removed?

Yes. The cover attaches to the installed magnets and can be removed when access is needed.

Is it suitable for coastal areas?

WindSeal is designed for windy coastal environments.

Interested in WindSeal?

Have a drafty aluminium door?

We'd love to hear from you.
